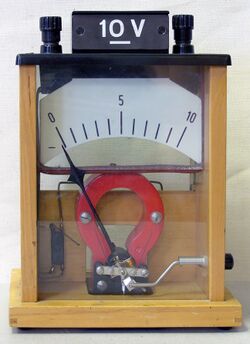

Voltmeter hg

Symbole voltmetre

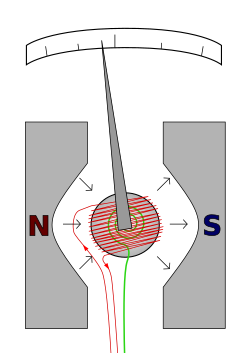

Galvanometer diagram

Voltmeter

Voltmeter is an electrical instrument used to measure the electric potential difference between two points in an electric circuit. The unit of measurement for electric potential difference is the volt, named after the Italian physicist Alessandro Volta. Voltmeters are essential tools in both laboratory and industrial settings, as well as for various types of electrical work and electronics projects.

Types of Voltmeters[edit | edit source]

Voltmeters can be broadly classified into two categories: analog and digital.

Analog Voltmeters[edit | edit source]

Analog voltmeters use a moving coil, a pointer, and a calibrated scale to display measurements. The most common type of analog voltmeter is the galvanometer, which measures small voltages. For higher voltages, a series resistor is added to extend the range of the device. Analog voltmeters are known for their precision and are often used in laboratories and in calibration services.

Digital Voltmeters[edit | edit source]

Digital voltmeters (DVMs) display the voltage measurement on a digital display. They use analog-to-digital conversion to convert the input voltage into a digital value. Digital voltmeters offer several advantages over analog types, including higher precision, the ability to read very low voltages, and ease of reading. They have become the most widely used type of voltmeter for both professional and hobbyist applications.

Measurement Range and Sensitivity[edit | edit source]

The measurement range of a voltmeter is determined by its design and the internal circuitry. Some voltmeters are designed to measure only a few volts, while others can measure up to several thousand volts. The sensitivity of a voltmeter is a measure of its ability to detect small changes in voltage.

Applications[edit | edit source]

Voltmeters are used in a wide range of applications, from simple tasks such as checking the charge of a battery to more complex uses in power systems, electronics design, and troubleshooting electrical circuits. They are also used in educational settings to teach students about electricity and circuits.

Safety Considerations[edit | edit source]

When using a voltmeter, it is important to observe safety precautions to prevent injury or damage to the device. This includes selecting a voltmeter with an appropriate voltage range for the circuit being tested and ensuring that the device is properly grounded.
